PVC door window machine for lock hole milling on China WDMA for Canada

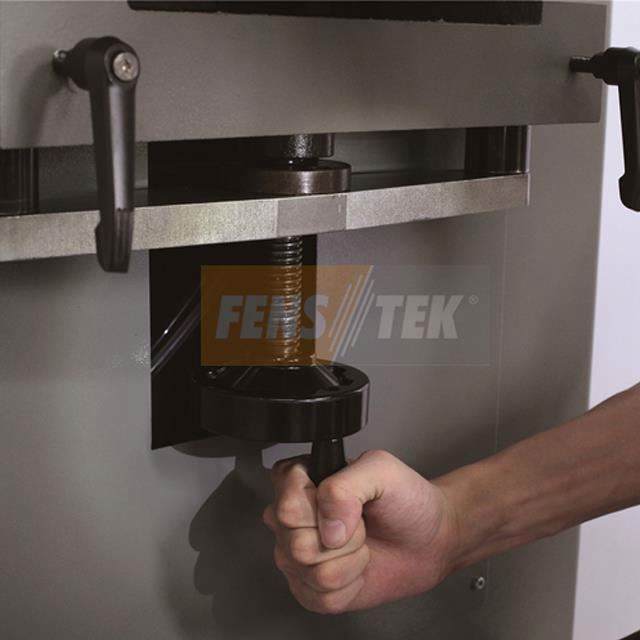

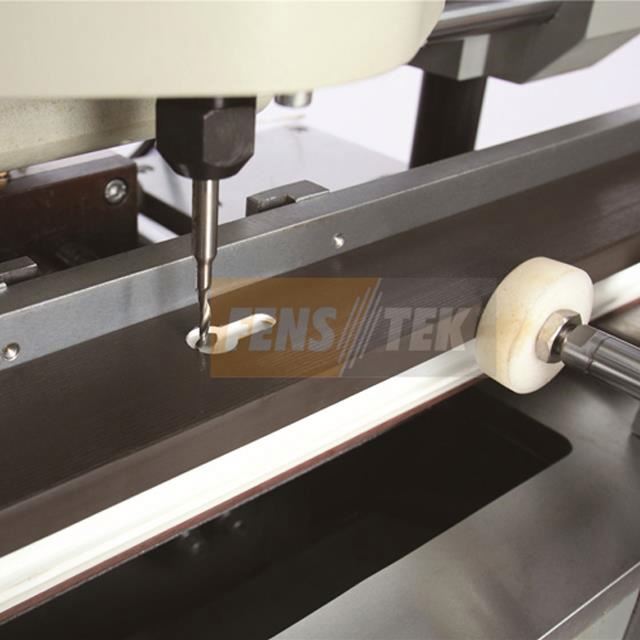

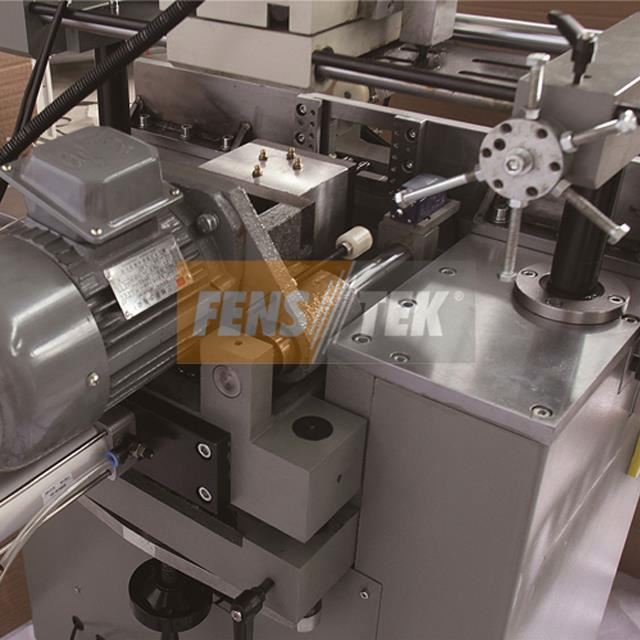

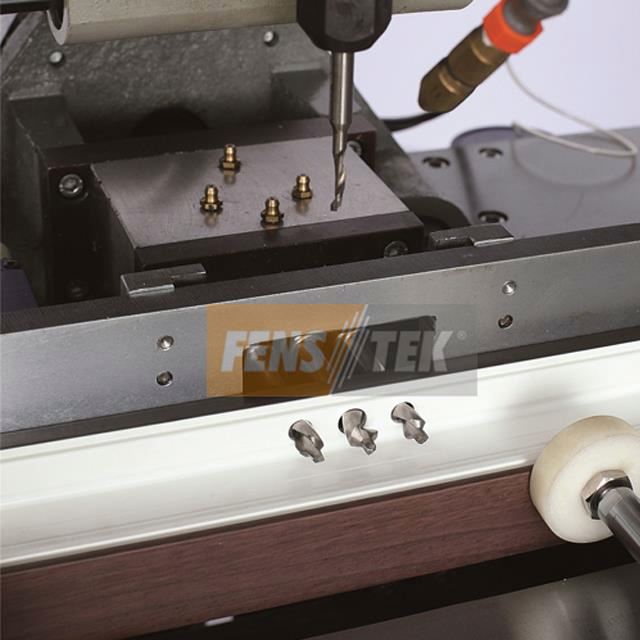

PVC door window machine Lock hole milling machine NLHM100 Product Description Features of pvc door window machine 1. The lock hole drill system opposite the operator, easy operation. 2. Hydro-pneumatic actuator cylinder feeding device of the drill system to reduce labor intensity. 3.Auto milling handle hole, Euro groove slot and various hole or slot milling for processing the PVC window profile. 4. Horizontal triple drill and vertical copy router with special cutout working table to realize one time finishing. 5. Routing to stops or universal template in 1:1 ratio. 6. Pneumatic horizontal clamping. 7. Handle wheel for easy adjusting milling height. Friendly using design. 8. Equipped with standard hole template. Plain template is standard equipped or specific designed. 9.Simple self-Centering bar. Parameter Operation Air Pressure 0.5~0.8(MPa) Air Consumption 30L/min Input Voltage 380V/50Hz or Customer specification Main-Shaft Revolution 11200/910(r/min) Input Power 1.85(kW)) Cutter Diameter φ5φ8(mm) Copy Milling Range 90×290(mm) Overall Dimension 1000×1130×1500(mm)...

Effective Price :

Request A Quote

NLHM100
